Resource Versioning and the Memento Protocol

Introduction: A common resource versioning pattern

The Memento protocol is widely supported by web archives. It provides a uniform HTTP-based approach to access Mementos, archived versions of web resources, in distributed web archives around the world. Although the Memento protocol can provide the same uniform interface to access resource versions in systems such as wikis, content management systems, and software versioning systems, its applicability in that realm is not well understood. This document provides clarifications and details various ways in which resource versioning systems can support the Memento protocol.

The Memento protocol is closely aligned with a common resource versioning pattern that consists of:
  • Having a generic URI where at any moment in time the current version of the resource is accessible. The Memento protocol refers to the resource identified by the generic URI as the original resource.
  • Having a dedicated version URI for each resource version. The Memento protocol refers to a resource identified by a version URI as a Memento.
This versioning pattern can, for example, be observed on top of W3C Specifications such as the Architecture of the World Wide Web:
  • http://www.w3.org/TR/webarch/ is the generic URI for that specification;
  • http://www.w3.org/TR/2004/REC-webarch-20041215/ is the version URI for the current version of that specification;
  • http://www.w3.org/TR/2004/PR-webarch-20041105/ is the version URI for the previous version of that specification;
  • http://www.w3.org/TR/2004/WD-webarch-20040816/ is the version URI for the version before that as indicated on top of the previous version of the specification.
Supporting Memento in systems that follow such a versioning pattern does not necessarily require implementing all aspects of the protocol. There are situations in which a little bit of Memento, for example only providing Memento HTTP headers and links with Memento relation types, can go a long way.

This document describes, from simple to more complex, the ways in which a system that hosts resource versions can support the Memento framework by: It also describes how the Memento protocol can be used for Expressing that resources are frozen in time and place, a special case of resource versioning in that at the time of publication, or some time afterwards, it is known that the content of a resource will no longer change while it will remain at its original URI of publication.

The Memento HTTP headers and link relation types used in this document are registered in the Permanent IANA Message Header Registry, and the IANA Link Relation Type Registry, respectively. They are formally defined in RFC 7089.

Providing HTTP response headers for resource versions to convey version date and links

A version resource is a resource with frozen content that was current for a certain period in time. It encapsulates a prior state of the generic resource, identified by its generic URI. Hence, a version resource is a Memento as defined in the Memento specification, and the appropriate Memento HTTP headers can be applied. The headers are used to express the version datetime, to relate a version URI to the corresponding generic URI, and to support navigation between versions. In essence, they are introduced to convey the version information that is provided on top of the W3C specification in a machine-actionable manner.

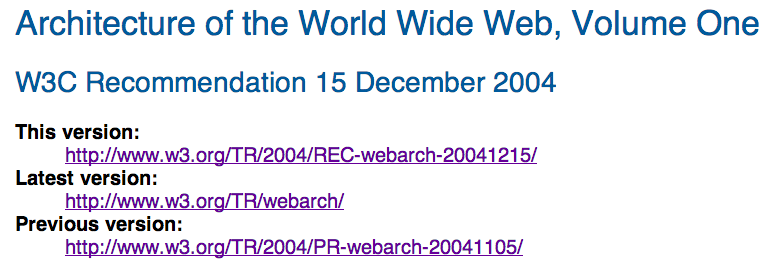

version information for a W3C specification
  • Express version datetime: The Memento-Datetime header can be used to express the time beyond which the version resource will no longer change, typically the date/time of publication of the version. Using http://www.w3.org/TR/2004/PR-webarch-20041105/ as an example version URI, the response to a HTTP HEAD/GET request against that URI would be:



    Note that the values of the Last-Modified and Memento-Datetime headers are the same. Cases exist in which the date provided in the Last-Modified header is older or more recent than the date in Memento-Datetime; see the blog post Memento-Datetime is not Last-Modified for details. Essentially, the Last-Modified header does not entail a promise that the the version resource will no longer change; the Memento-Datetime header does.

  • Relate a version URI to its corresponding generic URI: A special relation exists between the resource versions, each identified by their dedicated version URI, and the original resource identified by the generic URI. This relation can be expressed by including an HTTP Link header in the response to a HTTP HEAD/GET request on a version URI. The Link header contains a link with the original relation type pointing at the generic URI. Again, using http://www.w3.org/TR/2004/PR-webarch-20041105/ as an example version URI, the response to a HTTP HEAD/GET request against that URI becomes:



  • Support navigation between versions: Navigation between resource versions can be enabled by using an HTTP Link header in responses to HTTP HEAD/GET requests against a version URI. This header includes links with relation types such as prev, next, predecessor-version, successor-version, first, last as detailed in RFC5988 and RFC5829. However, these links do not convey that each of the interlinked versions are Mementos, frozen in time, nor do they provide the datetime at which the versions were frozen. This missing information can be provided by using additional links that have the memento relation type.

    Using the example of the Architecture of the World Wide Web specification again, the response to a HTTP HEAD/GET request against the version URI http://www.w3.org/TR/2004/PR-webarch-20041105/ becomes:

Publishing a TimeMap, a list of resource versions

A system that hosts resource versions can publish a TimeMap, a document that lists the version URI and version date of all resource versions as well as the associated generic URI. In essence, a TimeMap is very similar to the calendar view the Wayback Machine provides of Mementos it holds for a certain resource, with a TimeMap providing the information in a machine-actionable manner. The below picture shows the Wayback's calendar view for Mementos of the W3C specification..

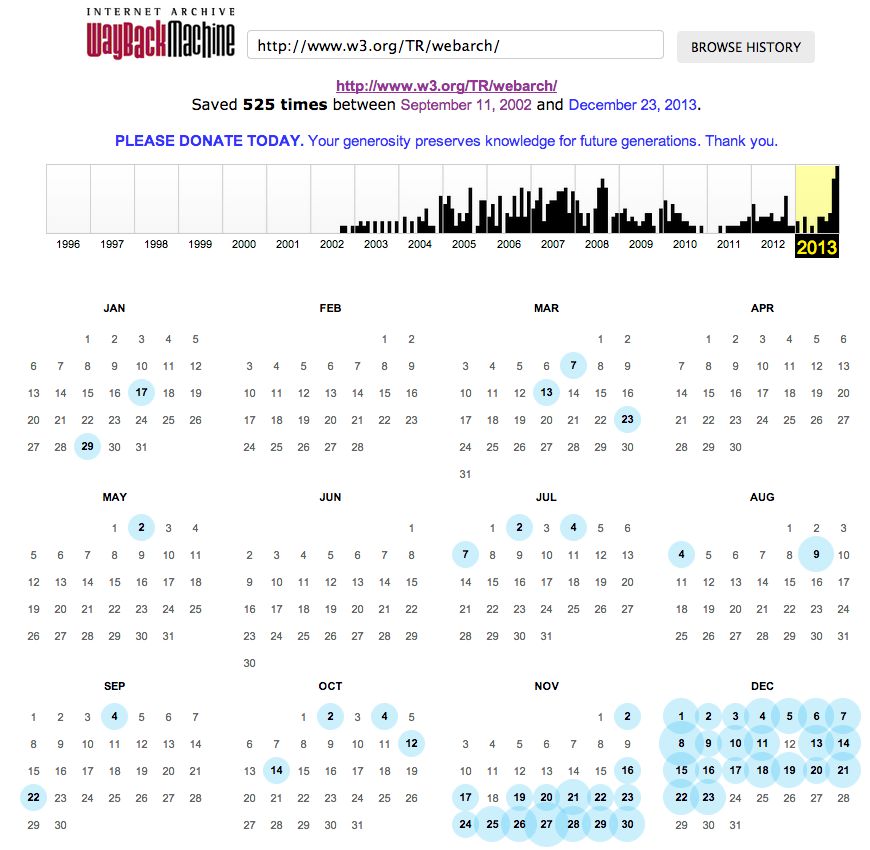

Wayback Mementos for the W3C specification

For self-containedness, the TimeMap also lists its own URI. In a full Memento implementation, which also entails Exposing a TimeGate, the TimeMap also lists the URI of the TimeGate. Because HTTP Link headers are used throughout the Memento protocol, the default serialization of a TimeMap is the same as that of the content of the HTTP Link header, defined in RFC5988. Its media type is application/link-format, defined in RFC6690. A JSON format for TimeMaps is currently under consideration.

In the ongoing example of the Architecture of the World Wide Web specification, a TimeMap could be published at, for example, http://www.w3.org/TR/timemap/webarch/ and the response to a HTTP GET on that URI would be:



The published TimeMap is made discoverable by means of a link with the timemap relation type provided in the Link header in responses to HTTP HEAD/GET requests against each version URI as well as the generic URI. Using http://www.w3.org/TR/2004/PR-webarch-20041105/ as an example version URI, the response to a HTTP HEAD/GET request against that URI, omitting links among versions for brevity, becomes:

Exposing a TimeGate that supports datetime negotiation to access resource versions

The most powerful feature of the Memento protocol is datetime negotiation, a variation on content negotiation. In datetime negotiation, an HTTP HEAD/GET is issued against the generic URI, including an Accept-Datetime request header that conveys the datetime of the resource version that is desired by the client. Through the intermediation of a TimeGate that has access to the version history of the original resource, the client will be led to the resource version (and hence the version URI) that was the current one at the datetime expressed by the client.

Many datetime negotiation implementation patterns exist, detailed in the Datetime Negotiation section of the Memento protocol, to accommodate situations in which:
  • The original resource and the resource versions are hosted by the same system, as is the case with wikis, content management systems, and software versioning systems.
  • The original resource and the resource versions are hosted by the different systems, as is the case with snapshots of resources in web archives.
For wikis, content management systems, and software versioning systems that follow the versioning approach illustrated at the beginning of this document, the typical implementation of datetime negotiation is one of the following patterns detailed in RFC 7089:
  • Pattern 1.1 in which the original resource coincides with its TimeGate. When a client issues an HTTP HEAD/GET request against the generic URI of this resource, and that request includes Accept-Datetime request header it will be redirected (302 Found status code) to the version URI that was current at the time specified in the Accept-Datetime request header. Details for the ongoing example are here.
  • Pattern 2.1 in which the original resource does not coincide with its TimeGate. When a client issues an HTTP HEAD/GET request, with or without an Accept-Datetime request header, against the generic URI of this resource, the response will contain an HTTP Link header that includes a link with the timegate relation type that points at the TimeGate associated with the original resource. The client then proceeds to issue an HTTP HEAD/GET request that includes the Accept-Datetime request header against the URI of the TimeGate associated with the original resource. As a result of this, the client will be redirected (302 Found status code) to the version URI that was current at the time specified in the Accept-Datetime request header. Details for the ongoing example are here.
The Memento extension for MediaWiki supports both patterns. Out of the box, Pattern 1.1 is active, but the configuration options allow selecting Pattern 2.1.

Following Pattern 1.1, for the ongoing example of the Architecture of the World Wide Web specification, the TimeGate would coincide with the generic URI http://www.w3.org/TR/webarch/. Lets assume a client wants to access the version of the specification that was current on September 11 2004. In order to do so, the client issues the following HTTP HEAD (or GET) request against the specification's generic URI http://www.w3.org/TR/webarch/:



The response to this request is shown below. It is a redirection to version URI http://www.w3.org/TR/2004/WD-webarch-20040816/, which was the current version between August 16 2008 and November 5 2008. Note the use of the Vary header to indicate the resource supports datetime negotiation. Note also the Link header that indicates that the original resource coincides with its TimeGate. It also includes a link to the previously discussed TimeMap.



The client can then proceed to access the resource version it desired by issuing a HTTP GET request against the version URI http://www.w3.org/TR/2004/WD-webarch-20040816/. The response to that request includes the Memento-Datetime header and all previously discussed links:



Following Pattern 2.1, the TimeGate would not coincide with the generic URI and could, for example, be exposed at http://www.w3.org/TR/timegate/webarch/. Lets again assume a client wants to access the version of the specification that was current on September 11 2004. In order to do so, the client issues the following HTTP HEAD (or GET) request against the specification's generic URI http://www.w3.org/TR/webarch/:



The response to that request includes a link to the TimeGate http://www.w3.org/TR/timegate/webarch/ associated with the original resource http://www.w3.org/TR/webarch/:



The client then engages in datetime negotiation with that TimeGate by issuing an HTTP HEAD request against its URI http://www.w3.org/TR/timegate/webarch/ including the Accept-Datetime header:



The response to this request is a redirection to the version URI http://www.w3.org/TR/2004/WD-webarch-20040816/, which was the current version between August 16 2008 and November 5 2008. Note the use of the Vary header to indicate the resource supports datetime negotiation. Note also the Link header that points to the original resource and to the previously discussed TimeMap.



The client can then proceed to access the resource version it desired by issuing a HTTP GET request against the version URI http://www.w3.org/TR/2004/WD-webarch-20040816/. The response to that request includes the Memento-Datetime header and all previously discussed links:

Special Case: Resources frozen in time and place

The content of many resources stops changing some time after their initial publication or it is even intentionally stable at publication time. Once such resources stop changing, they are frozen in time, Mementos. Examples are tweets, news stories, blog posts. In addition, these kind of resources remain available at their original URI of publication and hence are also frozen in place. As a result, they are at the same time the original resource and its Memento.

Take as an example the tweet https://twitter.com/hvdsomp/status/401134723210416128 posted on November 14 2013 at 4:49 PM Mountain Time.

version information for a W3C specification

The Memento protocol allows expressing that a resource is frozen in time and in place:
  • Expressing that a resource is frozen in time: A server can express that one of its resources will no longer change by using a Memento-Datetime HTTP header in responses to HTTP HEAD/GET requests on the resource URI. The value of this header is the date/time the resource became stable. This header sends a much stronger message about the stability of a resource than the provision of a Last-Modified header, which does not entail a promise that the resource will no longer change past the provided date.

    As an indication that the content of the example tweet will not change past its publication time, the Memento-Datetime header can be included in a response to a HTTP HEAD/GET on the URI of the tweet. The value of the header is in this case equal to the publication time and is expressed in Greenwich Mean Time. Note that Twitter sets the value of the Last-Modified header equal to that of the Date header, which expresses the response time. This is another example of Last-Modified being more recent than Memento-Datetime as described in Memento-Datetime is not Last-Modified.



  • Expressing that a resource is frozen in place: A server can express that a resource is frozen at its original URI by providing an HTTP Link header in responses to HTTP HEAD/GET requests on the resource URI. This header contains a link with the original relation type pointing at the original URI. Providing these links helps to distinguish these "in situ" frozen resources from resources that are frozen at a URI that is different from their original URI, as is the case for snapshots in web archives and version resources in content management systems.

    For the example tweet, the response header then looks as follows:
